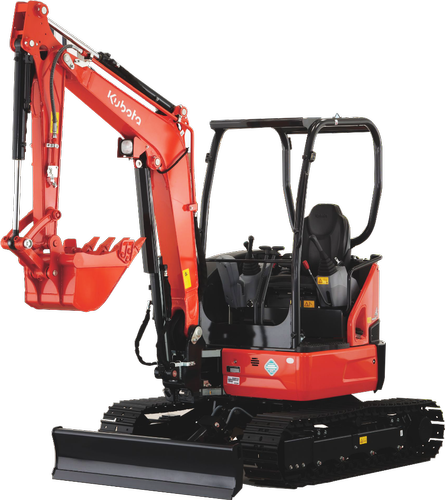

Kubota U30-6 Excavator

Handle any job with confldence. The kubota U30-6 combines superior power and outstanding versatility to tackle demanding jobs in a variety of conditions.

Kubota U30-6 Excavator

Handle any job with confldence. The kubota U30-6 combines superior power and outstanding versatility to tackle demanding jobs in a variety of conditions.

Kubota U30-6 Excavator

Kubota U30-6 Excavator

Handle any job with confldence. The kubota U30-6 combines superior power and outstanding versatility to tackle demanding jobs in a variety of conditions.More powerful bucket breakout force results in the smooth, productive operation Kubota machines are known



Modal

U30-6

Bucket capacity   &</br>

0.10

Std.bucket width: (with/without cutting blade) mm

570//520

Machine weight (rubber/steel crawler)  kg

3030/3120

Operating weight (including operator weight: 75kg) (rubber/steel crawler)  kg

3105/3195

Dimensions</br>

(In transport condition)</br>

Overall length   mm</br>

Overall height   mm</br>

Overall width    mm</br>

Min. ground clearance  mm

4530</br>

2455</br>

1550</br>

290

Engine</br>

Model</br>

Total displacement  cc</br>

Rated output (SAE J1995 gross)    kW(HP)/rpm</br>

Kubota D1703-M-E3-BH-11</br>

1647</br>

20.5(27.5)/2200

Working range </br>

Max. digging height  mm</br>

Max. dumping height  mm</br>

Max. digging depth   mm</br>

Max. vertical wall digging depth mm</br>

Max. digging radius   mm</br>

Boom swing (left/right)  deg</br>

Min. turning radius (with swing)   mm</br>

Min. tail turning radius   mm</br>

Max. breakout force (bucket)  kN (kgf)</br>

4250</br>

2865</br>

2820</br>

2290</br>

4905</br>

70/48</br>

2290(1845)</br>

790</br>

30.0(3059)

Track type

  Rubber / Steel

Track width    mm

300

Travel section</br>

Crawler length    mm/br>

Tumbler distance  mm</br>

Travel speed (1st/2nd gear)  km/h</br>

Max. climbing angle    deg</br>

2100</br>

1665</br>

3.1/4.6

30

Swing speed  rpm </br>

8.8

Blade </br>

Width   mm</br>

Height  mm</br>

Max. lift above ground/drop below ground  mm<br>

1550</br>

343</br>

365/375

Hydraulic pump type

Variable pump x 2

 + gear pump x 1

Swivel motor type

Hydraulic piston motor

Travel motor type

Hydraulic piston motor:2F

Fuel tank capacity    L
